PrimaryMembers / Main Forme

    Primary members are the main load carrying and support members of a pre-engineered building. The main frame members include columns, rafters and other supporting members. The shape and size of these members vary based on the application and requirements. The frame is erected by bolting the end plates of connecting sections together. All the steel sections and welded plate members are designed in accordance with the applicable sections as per the latest international codes and standards such as AISC, AISI, MBMA and IS to meet all the customer specifications.

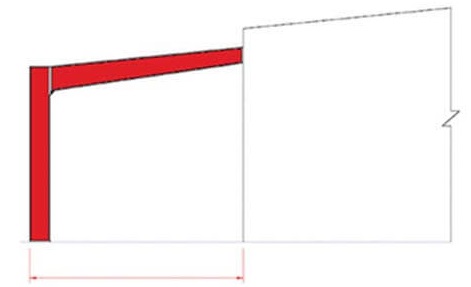

LEAN TO (L-TO) SPAN 3 x 8 & 3m to 18m
SPACE SAVER (SV) SPAN 6 x 8 & 6m to 18m

L CANOPY (L-CAN) SPAN 3m to 6m

BUTTERFLY CANOPY (T-CAN) SPAN 6m to 12m

SINGLE SLOPE SPAN 6m to 18m

RIGID FRAME (RF) SPAN 6m to 96m

BEAM & COLUMN (BC-1) SPAN 24m to 48m

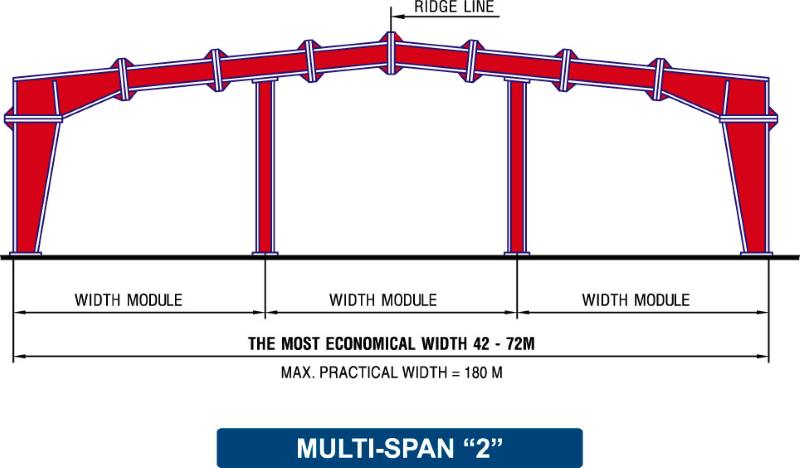

BEAM & COLUMN (BC-2) SPAN 24m to 48m

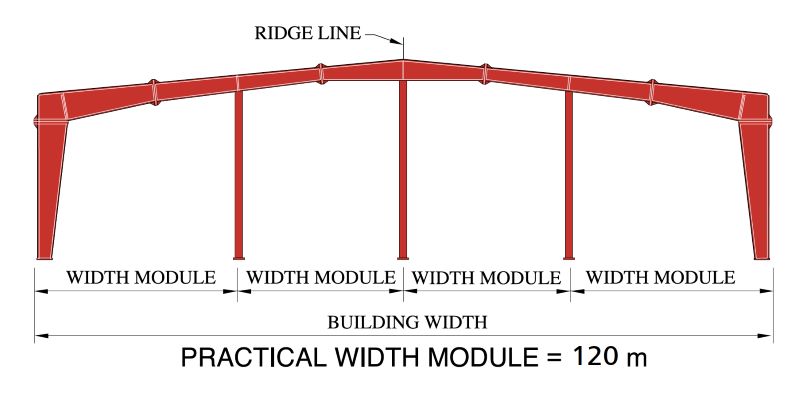

BEAM & COLUMN (BC-3) SPAN 48m to 96m

MULTI SPAN (MS) SPAN 48m to 96m

Product & Services

Our Clients

DCSL Projects

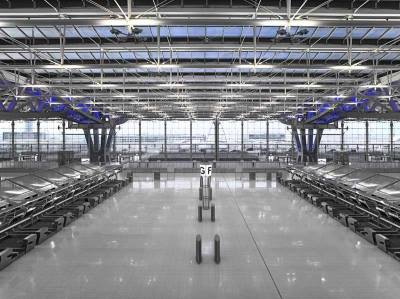

TRUSSES

It is a rigid structure, ideal for large span roof systems, multiple bay buildings and as mezzanine floor framing.

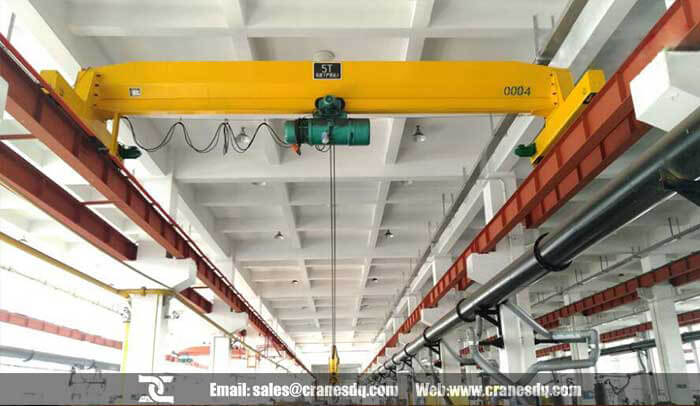

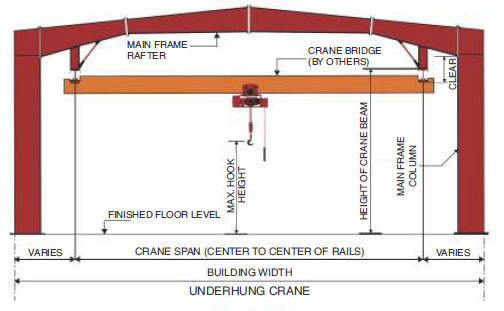

CRANE BEAMS

Crane Beams are support members for different type of cranes and allow for unobstructed movement of cranes along the building length. These crane beams are supported on the columns of a building.

MEZZANINE SYSTEMS

Standard mezzanine system consists of profiled steel deck, mezzanine joists, built-up beams and intermediate support columns. Built-up beams span in lateral directions and mezzanine joists in longitudinal directions bolted to the top flange of beams. A concrete slab is cast on the steel deck as a finished surface. Steel checkered plates can also be used as top surface.

FASCIAS AND CANOPIES

DCSL provides various types of fascias specially designed as per the customer’s requirements. These can be either vertical, horizontal or with curved sheeting to enhance the architectural look of the building. Wall canopies at eaves, endwall, over doors and windows are also provided based on the requirement.
